W10KG profile thumbturn cylinder for keyed-alike original systems

Name: W10KG profile thumbturn cylinder for keyed-alike original systems
Brand: Würth
SKU: 5688060542

Thumbturn cylinder W10KG locking system
TMBTURNCYL-W10KG-KD-KA-1STSYS-(NI)-60X35

Art.-no. 5688060542

EAN 4054458682253

All versions

Similar products

Individual price display after login

W10KG profile thumbturn cylinder for keyed-alike original systems

Art.-no. 5688060542

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

All cylinders are locked with the same key, and each customer receives their own protected keyed-alike lock

Würth-trademarked profile

Locking technology: Per lock side, 9 pressure-mounted, solid tumblers, offset in 2 rows, positioned axially to the central axis and 1 spring-loaded ball deflection pin

Domed core head with horizontal core head groove for force-fit transfer of torques when opening and closing

Improved boring and drilling protection due to centrally positioned carbide pins in the cylinder housing and cylinder core

3 strong nickel-silver keys are supplied with each cylinder

From the inside, the cylinder is locked with a knob

Each system in an order (half, double or thumbturn cylinder) is unique and is manufactured to customer specifications

A security card (proof of ownership) is provided with each system

Easy to use without locking diagram via article number

Notice

All article numbers included in an order from the W 10 KG system are delivered with identical locking. Each new order comes with a new keyed-alike lock.

The locking channel of the cylinder is positioned eccentrically and cannot be used for all security door fittings with cylinder covers.

Locking systems are special-order products! The customer does not have the right to return or exchange the product.

Subsequent and replacement deliveries are only possible when proof of ownership (security card) is presented to the fitting centre.

Delivery time is approx. 6-10 working days

Additional keys for the original system can be ordered using art. no. 5688060820.

Dimensions subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents


Type of closure	Keyed alike
Design	10-pin
Construction type	Modular
With anti-drilling device	Yes
Locking lug	Not adjustable

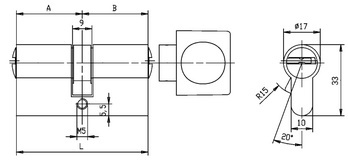

External length x internal length	60 x 35 mm
Length	95 mm
Emergency and danger function (lockable on both sides)	Yes
Tumbler level	2
Tumbler active	9
Tumbler passive	1
Comfort	6
Cylinder security	6
Key security	6
Material	Brass / steel
Surface	Nickel plated
Gloss level	Glossy
Material of keys	Nickel silver
Number of keys	3 PCS
Fire protection certified	No
Patent protection up to and including calendar year	2026
Standards	EN 1303:2005, DIN 18252

Classification key according to EN 1303:2005
1	6	0	0	0	C	6	2^*)
^*) Since the tested locking cylinder does not have built-in core extraction protection, attack resistance class 1/BZ is achieved only when combined with a security door fitting in accordance with EN 1906 or DIN 18257 with built-in core extraction protection.
