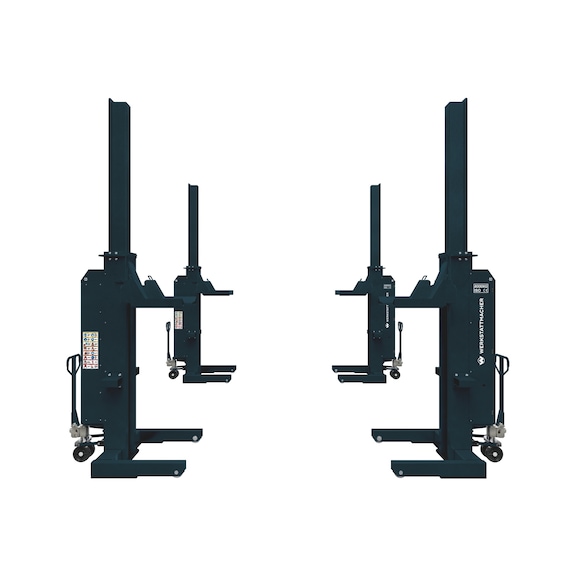

WSM-MC-8T-4S column lift system
COLMNLFT-WSM-MC-8T-4S
Art.-no. 9501038283
EAN 4262582870600
Individual price display after login
Exclusively for trade customers
Register now and access more than 125,000 products
High-performance column lift system for trucks with an impressive load capacity of 8,000 kg and mechanical compensation - ideal for demanding lifting processes.
- Hydraulic, battery-operated column lift system with 8 t load capacity
- Each column has a maximum lifting capacity of 8.0 t
- Up to 8 independent columns can be coupled to a system
- Wireless signal transmission for reliable, synchronised control
- User-friendly network setup and control mode selection
- Battery operation for smooth operation without connection to the mains
- HMI display for network configuration, operating modes and system parameters
- System activation with ID card
- Acoustic warning signal during the final lowering stage
- Lifting system fully battery-operated
- Each column has a single-phase charger for AC 110-240 V, controlled with 24 V safety low voltage (DC)
- Adjustable wheel mount for tyre diameters from 500 mm to 1,250 mm
Product information
Datasheets(X)
Compensation equipment | Mechanical |
Nominal voltage | 24 V |
Type of vehicle | Truck |
Lift height | 180 cm |
Number of control units | 1 PCS |
Load capacity | 8000 kg |
Colour | Anthracite grey RAL 7016 |
Fork length | 360 cm |
