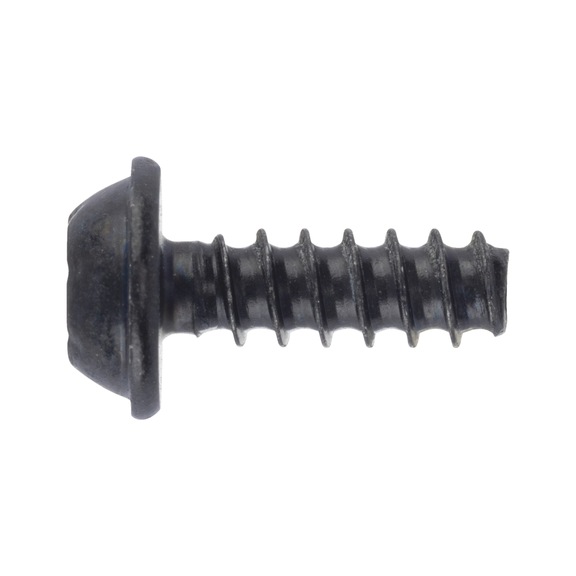

WÜPLAST® NEO flanged pan head screw with hexalobular Plus recess W5451 steel 10.9 zinc-nickel plated black
SHR-FLSH-W5451-TXP10-10.9-(ZNBH)-3X10
Art.-no. 425823 10
EAN 4062856661367
Register now and access more than 125,000 products
Optimised thread geometry
- Optimal material flow when screwing
- Reliable hold and improved functional reliability due to high degree of self-locking
- Minimal length of thread engagement
Large core diameter
- Increased breaking torque and therefore high screw-in torques are possible
- For universal use, especially for fibre-reinforced plastics
Simple positioning of the screwdriver bit due to lead-in chamfers in the drive.
Datasheets(X)
Nominal diameter (d1) | 3 mm |
Length (l1) | 10 mm |
Head diameter (dk) | 6.5 mm |
Head height (k1) | 2.42 mm |
Material | Steel |
Property class | 10.9 |
Surface | Zinc nickel black |
Internal drive | TXP15+R |
Other standard | W5451 |
Head type | Pan head with collar |
Thread type | Plastic screw thread |
Shaft length (a) | 1.5 mm |
Pitch | 1.12 mm |
