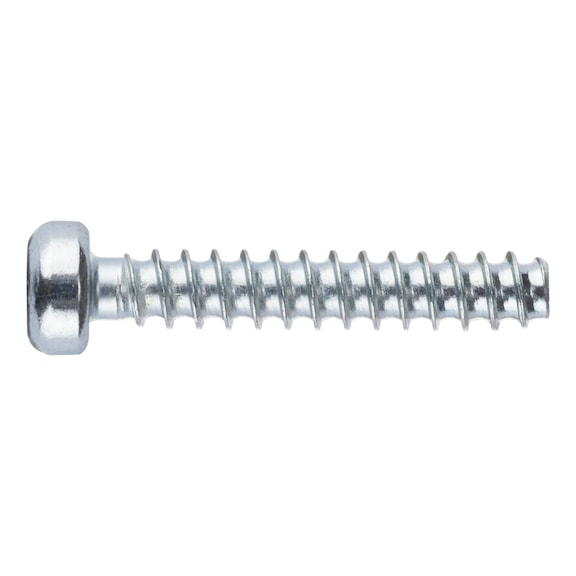

WÜPLAST® NEO pan head screw with hexalobular Plus recess W5452 steel 10.9 zinc plated
SCR-RSD-W5452-TXP8-10.9-(A3K)-2,5X12
Art.-no. 425912512
EAN 4062856662371
Register now and access more than 125,000 products
Optimised thread geometry
- Optimal material flow when screwing
- Reliable hold and improved functional reliability due to high degree of self-locking
- Minimal length of thread engagement
Large core diameter
- Increased breaking torque and therefore high screw-in torques are possible
- For universal use, especially for fibre-reinforced plastics
Simple positioning of the screwdriver bit due to lead-in chamfers in the drive.
Datasheets(X)
Nominal diameter (d1) | 2.5 mm |
Length (l1) | 12 mm |
Head diameter (dk) | 4.4 mm |
Head height (k1) | 2.02 mm |
Material | Steel |
Property class | 10.9 |
Surface | Zinc plated |
Internal drive | TXP6+R |
Other standard | W5452 |
Head type | Pan head |
Thread type | Plastic screw thread |
Max. drive depth (t max) | 1 mm |
