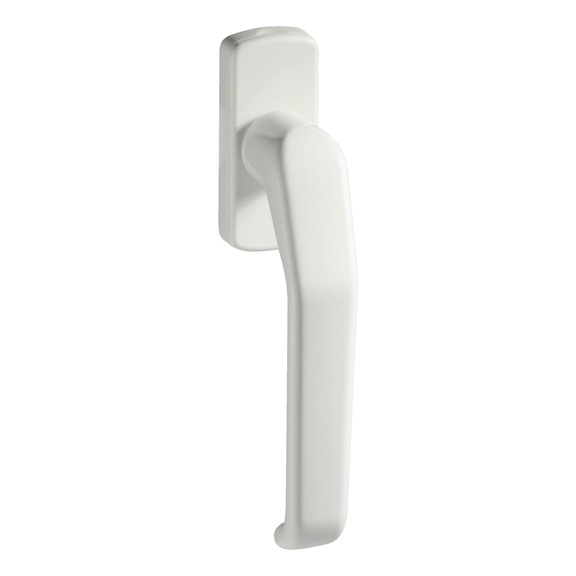

Window handle ZD 402

Window handle, die-cast zinc 402
WH-RT-ZD402-2SCR-R9016-WHITE-32-10

Art.-no. 0687770501
EAN 4024835888721

Prices for customers after login
Window handle ZD 402

Art.-no. 0687770501

Prices for customers after login
Quantity
PU
x 40 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

  • Plastic base escutcheon with quadruple 90° locking secures the window handle in the horizontal or vertical position

  • Cams prevent base escutcheon from being turned
Notice

For white plastic profiles, we recommend RAL colour 9016.



To secure, 5-mm diameter ASSY countersunk head screws can be used.

Specified dimensions not binding. Subject to technical changes.

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For private living areas, e.g. wood, plastic and aluminium windows.

Material

Die-cast zinc

Material of basic rosette

Plastic

Material of pin

Steel

Surface

Powder-coated

Colour

Traffic white RAL 9016

Length of pin (A)

32 mm

Square size

7 mm

Cam diameter (B)

10 mm

Engagement

Fourfold, 90 degrees

Screw length

40 mm

DIN direction

DIN R/L

Hole distance

43 mm

Lockable

No

Handle length

131 mm

Resistance class

0 - not applicable

Included in delivery

40 x window handles, individually packed incl. 2 x countersunk head screws M5 x 40 mm, zinc-plated

Additive article:

Product
Description
Quantity
PU
Price
/PU
Balcony door handle, type A Can be used on wooden balcony doors for private living areas

BALCDH-ALU-A-R9016-TRAFFICWHITE

Balcony door handle, type B For private living areas

BALCDH-ALU-B-R9016-TRAFFICWHITE
