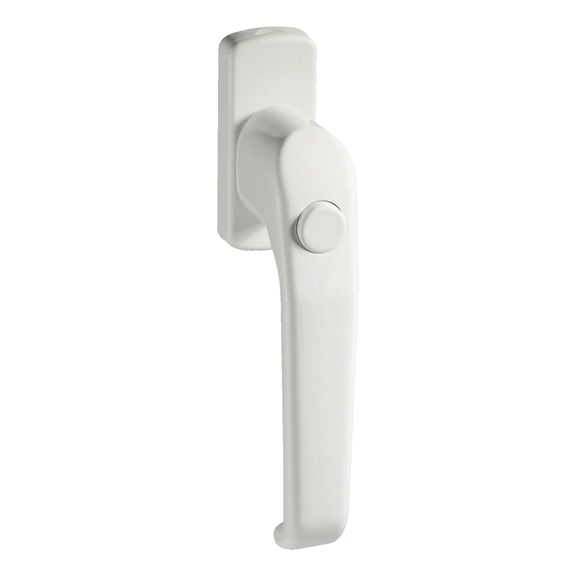

Window handle ZD 402

Window handle, die-cast zinc 402 safety knob
WH-RT-ZD402-2SCR-SKNOB-R9016-WHITE-28-10

Art.-no. 0687770600
EAN 4024835896276

Prices for customers after login
Window handle ZD 402

Art.-no. 0687770600

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Lock button
  • Plastic base escutcheon with quadruple 90° locking. Ensures that the window handle remains in a horizontal or vertical position

  • Cams prevent the base escutcheon rotating

  • Provides additional safety as the window handle is locked in all stop positions and can only be turned after pressing in the button
Notice

The cover caps can be printed in one colour at the customer's request, and with a quantity starting from 1,200 units. All we need is a template including the content and appearance.



Please send the template to the fitting centre, stating the order number and customer number (see order confirmation).



For white plastic profiles, we recommend RAL colour 9016.

Specified dimensions not binding. Subject to technical changes.

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For private living areas, e.g. wood, plastic and aluminium windows.

Material

Die-cast zinc

Material of basic rosette

Plastic

Material of pin

Steel

Surface

Powder-coated

Colour

Traffic white RAL 9016

Length of pin (A)

28 mm

Square size

7 mm

Cam diameter (B)

10 mm

Engagement

Fourfold, 90 degrees

Screw length

35 mm

DIN direction

DIN R/L

Hole distance

43 mm

Lockable

Always locked (with security knob)

Handle length

132 mm

Included in delivery

1 x window handle, 2 x countersunk head screws M5 x 35 mm

Additive article:

Product
Description
Quantity
PU
Price
/PU
Balcony door handle, type A Can be used on wooden balcony doors for private living areas

BALCDH-ALU-A-R9016-TRAFFICWHITE

Balcony door handle, type B For private living areas

BALCDH-ALU-B-R9016-TRAFFICWHITE
