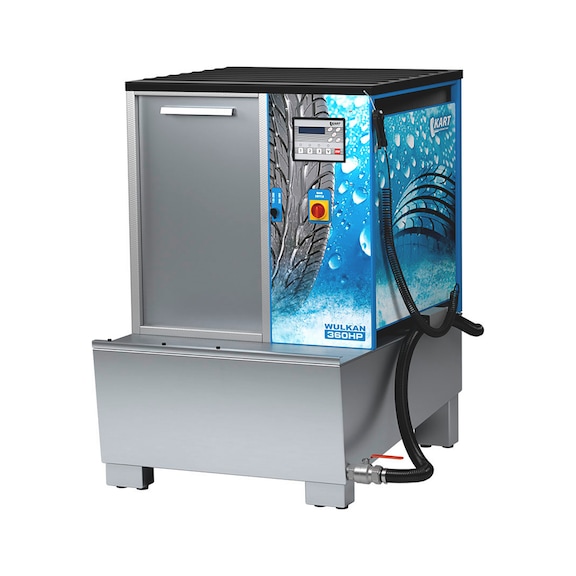

Wulkan 360HP wheel washing system

Wheel compatibility

• Wheel diameter: 560-800 mm


• Wheel width: 135-360 mm


• Maximum wheel weight: 60 kg

Washing program

• Factory-set washing time (adjustable, 3 programs) - 30, 60, 90 s


• Factory-set drying time (adjustable, 1 program) - 15 s


• Washing cycle limit (service block): 500

Heating system

• Heating element performance: 4 kW/400 V


• Heating time up to 50 °C: 60-120 minutes


• Safety lock to prevent overheating

Dimensions and weight

• Dimensions (W × D × H): 1,190 × 1,210 × 1,450 mm


• Net weight: 330 kg

Water and ventilation system

• Pump drive - three-phase current 400 V, 50 Hz, 5.5 kW, 2,900 rpm


• Pump flow rate: 600 l/min


• Water pressure: 4 bar


• Water quantity: 300 l


• Compressed air operating pressure: 8-12 bar


• WULKAN MIX granule quantity: 20 kg


• WULKAN TURBO wash concentrate quantity: 1 l

Drive system

• Wheel drive: Three-phase motor 400 V, 50 Hz, 0.37 kW, 930 rpm


• Performance - motors and drive: 6 kW


• Noise level: 79.5 dB(A)

Safety and comfort

• Pneumatic wheel stabilisation for narrow wheels


• Collection tray separate from the washing chamber


• Anti-vibration rubber feet


• Shut-off ball valve

Operation and control

• Computer control


• Operating instructions in six languages


• Easy-to-use screen


• Collection tray separate from the washing chamber

Standard accessories

• WULKAN MIX granules (25 kg)


• Basket for granules


• WULKAN TURBO wash concentrate (30 l)


• Rubber non-slip mats (2 pcs)


• Compressed air gun


• Top protective cover made of plastic

Optional accessories

• Rotating pneumatic wheel lifter WL360
