ZD 32 door handle, escutcheon fitting

Name: ZD 32 door handle, escutcheon fitting
Brand: Würth
SKU: 0687171241

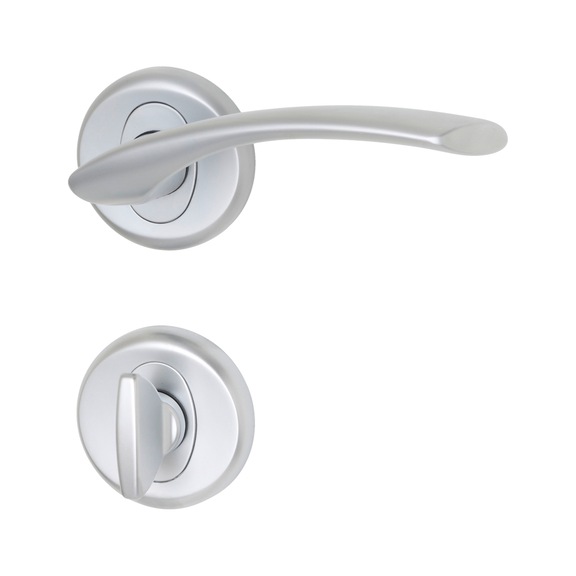

Rosette fitting ZD 32
DH-ZD32-ROS-WC-(CR)-MATT

Art.-no. 0687171241

EAN 4045727529263

All versions

Specification

High-quality door handle fittings made of die-cast zinc

The door handles have a spring support on both sides, which relieves the door lock

The support cams and the mounting, which uses exclusively metric screws, provide the best possible hold for the escutcheons

The cover escutcheons are screwed on in this model

The door handles are firmly connected to the base escutcheon

Notice

The door handle fittings include an unmounted square expanding pin or steel door spindle ■ 8 mm.

Winding soft adhesive tape around the screwdriver prevents damage to the handle surface during assembly.

Specified dimensions not binding. Subject to technical changes!

Application

Application area

Can be used for private living areas, e.g. interior, WC/bathroom and apartment entrance doors.

Technical information


Fitting version	Handle/handle
Distance (from handle to lock)	78 mm
Punched-hole	WC/bathroom
Suitable for	Toilet and bathroom doors
Fire protection certified	No
Bearing Technology	Door handle, fixed, Spring-mounted
Material of handle/ cover rosette or shield	Die-cast zinc
Gloss level	Matt
Surface	Chrome plated
Suitable for min./max. door thickness (TS)	38-42 mm
DIN direction	DIN R/L
Environmental Product Declaration	No
Type of assembly	Continuous fastening
Square size	8 mm
Insertion depth	34 mm
Handle length	133 mm
Door handle mount diameter	15 mm
Handle height inc. rosette/ label	53.5 mm
Rosette/ shield shape	Rosette round
Rosette diameter	56 mm
Rosette thickness	9.5 mm
Cam diameter	7.8 mm
Hole distance	38 mm
