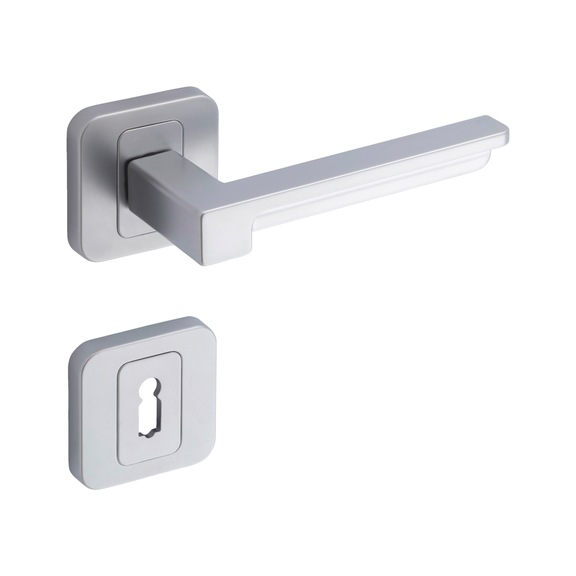

ZD 36 door handle, escutcheon fitting

Name: ZD 36 door handle, escutcheon fitting
Brand: Würth
SKU: 0687171310

Rosette fitting ZD 36
DH-ZD36-ROS-KH-(CR)-MATT

Art.-no. 0687171310

EAN 4048539565115

All versions

Similar products

Prices for customers after login

ZD 36 door handle, escutcheon fitting

Art.-no. 0687171310

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

High-quality door handle fittings made of die-cast zinc

The door handles have a spring support on both sides, which relieves the door lock

The support cams and the mounting, which uses exclusively metric screws, provide the best possible hold for the escutcheons

The cover escutcheons are screwed on in this model

The door handles are firmly connected to the base escutcheon

Notice

The door handle fittings include an unmounted square expanding pin or steel door spindle ■ 8 mm.

Winding soft adhesive tape around the screwdriver prevents damage to the handle surface during assembly.

Specified dimensions not binding. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Can be used for private living areas, e.g. interior, WC/bathroom and apartment entrance doors.


Fitting version	Handle/handle
Distance (from handle to lock)	72 mm
Punched-hole	KI
Suitable for	Interior doors
Fire protection certified	No
Shape of door handle	0 - not applicable
Bearing Technology	Door handle, fixed, Spring-mounted
Material of handle/ cover rosette or shield	Die-cast zinc
Gloss level	Matt
Surface	Chrome plated
Colour	0 - not applicable
Colour of handle	0 - not applicable
Suitable for min./max. door thickness (TS)	38-42 mm
DIN direction	DIN R/L
Utilisation category	0 - not applicable
Environmental Product Declaration	No
Type of assembly	Continuous fastening
Square size	8 mm
Spindle	0 - not applicable
Insertion depth	34.5 mm
Handle length	130 mm
Door handle mount diameter	15 mm
Handle height inc. rosette/ label	61 mm
Knob/handle plate/loop handle	0 - not applicable
Rosette/ shield shape	Rosette square
Length of rosette	56 mm
Rosette thickness	9.5 mm
Cam diameter	7.8 mm
Hole distance	38 mm
