ZD 44 door handle

Name: ZD 44 door handle
Brand: Würth
SKU: 0687171613

Rosette fitting ZD 44
DH-ZD-44-CH-ROS-CK-R-(NI)-MATT-BLACK

Art.-no. 0687171613

EAN 4058794099614

All versions

Similar products

Prices for customers after login

ZD 44 door handle

Art.-no. 0687171613

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

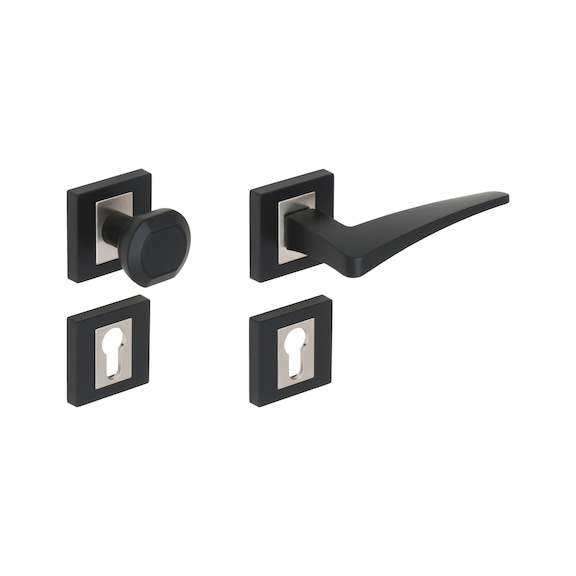

High-quality door handle fittings made of die-cast zinc

The door handles have a spring support on both sides, which relieves the door lock

The support cams and the mounting, which uses exclusively metric screws, provide the best possible hold for the escutcheons

The cover escutcheons are screwed on in this model

The door handles are firmly connected to the base escutcheon

Notice

The door handle fittings include an unmounted square expanding pin or spindle ■ 8 mm.

Winding a soft adhesive tape around the screwdriver prevents damage to the handle surface during assembly.

Specified dimensions not binding. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Can be used for private living areas, e.g. interior, WC/bathroom and apartment entrance doors.


Fitting version	Handle/knob
Distance (from handle to lock)	72 mm
Punched-hole	PC
Suitable for	Apartment entrance doors, Corridor and apartment entrance doors
Fire protection certified	No
Bearing Technology	Door handle, fixed, Spring-mounted
Material of handle/ cover rosette or shield	Die-cast zinc
Surface	Powder-coated
Colour	Black
Colour of handle	Black
Suitable for min./max. door thickness (TS)	38-42 mm
DIN direction	DIN R
Type of assembly	Continuous fastening
Square size	8 mm
Spindle	With M12 thread roll
Insertion depth	34.5 mm
Handle length	126 mm
Door handle mount diameter	15 mm
Handle height inc. rosette/ label	70 mm
Grip height inc. rosette/label	53.5 mm
Rosette/ shield shape	Rosette square
Length of rosette	56 mm
Rosette thickness	9.5 mm
Cam diameter	7.8 mm
Hole distance	38 mm
Included in delivery	1 x door handle DIN R mounted on rosettes, 1 x steel door spindle with threaded roller 8 x 75 mm, 1 x door knob on rosette, 1 x pair of PZ rosettes, 4 x metric screws with small head 5 x 52 mm, 1 x installation instructions/drilling template
