ZD 46 door handle, escutcheon fitting - DH-ZD46-ROS-CK-(A2-OPTIC)-IVORY - 4
ZD 46 door handle, escutcheon fitting - DH-ZD46-ROS-CK-(A2-OPTIC)-IVORY - 1
ZD 46 door handle, escutcheon fitting - DH-ZD46-ROS-CK-(A2-OPTIC)-IVORY - 2

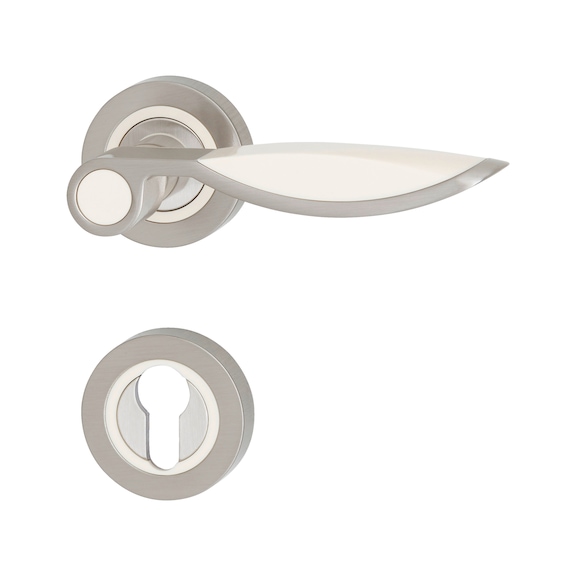

ZD 46 door handle, escutcheon fitting

Rosette fitting ZD 46
DH-ZD46-ROS-CK-(A2-OPTIC)-IVORY

Art.-no. 0687171582
EAN 4050641870247
All versions

Prices for customers after login
ZD 46 door handle, escutcheon fitting

Art.-no. 0687171582

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

High-quality door handle fittings made of die-cast zinc
  • The door handles have a spring support on both sides, which relieves the door lock

  • The support cams and the mounting, which uses exclusively metric screws, provide the best possible hold for the escutcheons

  • The cover escutcheons are screwed on in this model

  • The door handles are firmly connected to the base escutcheon
Notice

Door handle fittings include an unmounted square solid spindle ■ 8 mm.



Winding soft adhesive tape around the screwdriver prevents damage to the handle surface during assembly.

Specified dimensions not binding. Subject to technical changes!

Application area

Can be used for private living areas, e.g. interior, WC/bathroom and apartment entrance doors.

Fitting version

Handle/handle

Distance (from handle to lock)

72 mm

Punched-hole

PC

Suitable for

Apartment entrance doors, Interior doors

Fire protection certified

No

Bearing Technology

Door handle, fixed, Spring-mounted

Material of handle/ cover rosette or shield

Die-cast zinc

Surface

A2 appearance / ivory

Suitable for min./max. door thickness (TS)

38-42 mm

DIN direction

DIN R/L

Environmental Product Declaration

No

Type of assembly

Continuous fastening

Square size

8 mm

Insertion depth

40 mm

Handle length

132 mm

Door handle mount diameter

15 mm

Handle height inc. rosette/ label

66 mm

Rosette/ shield shape

Rosette round

Rosette diameter

52.5 mm

Rosette thickness

11 mm

Cam diameter

7.8 mm

Hole distance

38 mm

Product information

Datasheets (0)

Certificates/ Documents (0)

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
NP profile double cylinder In 6-pin system
NP profile double cylinder In 6-pin system

PRFLCYL-NP-DB-6PIN-ML-(NI)-DL-30X30MM

x 1 pcs
